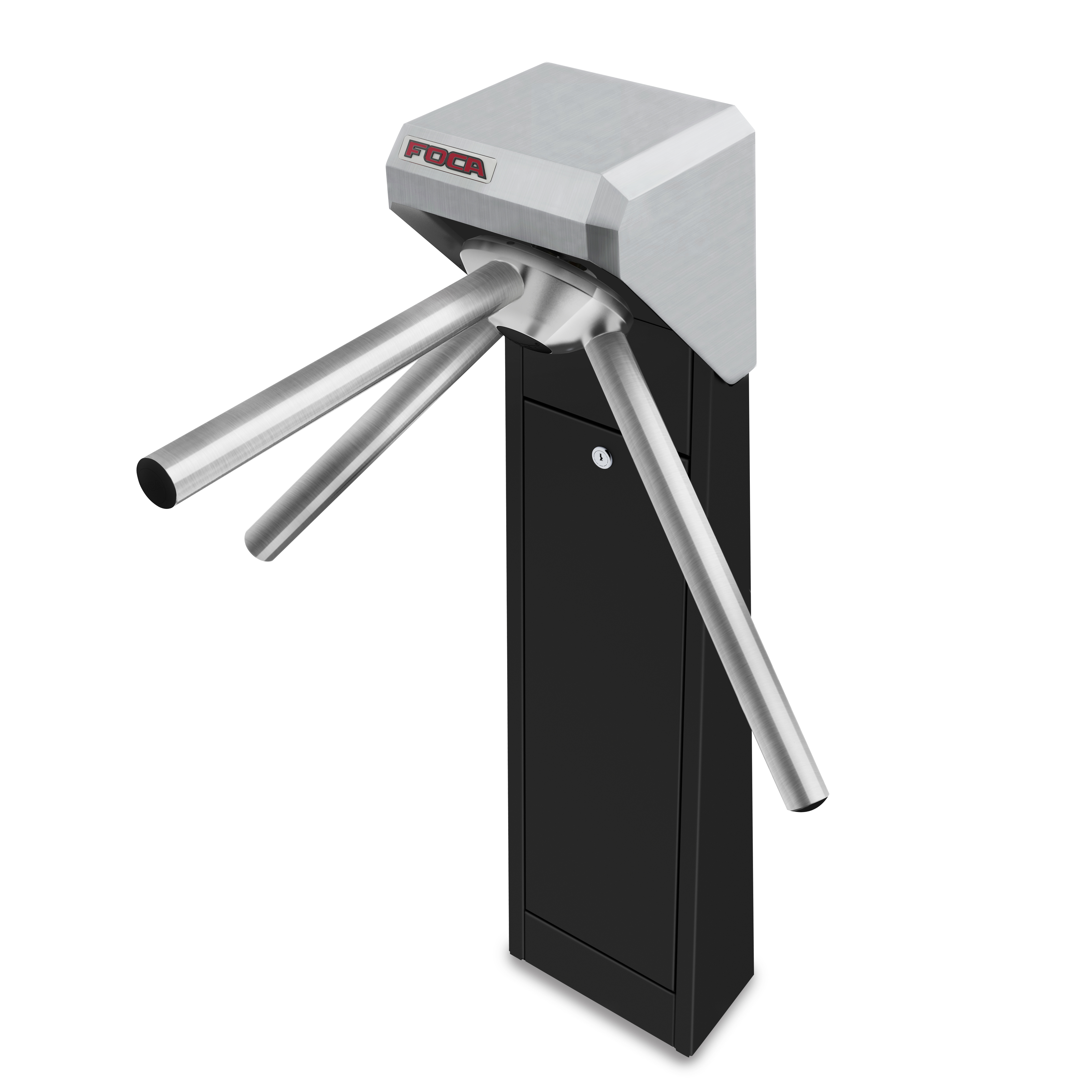

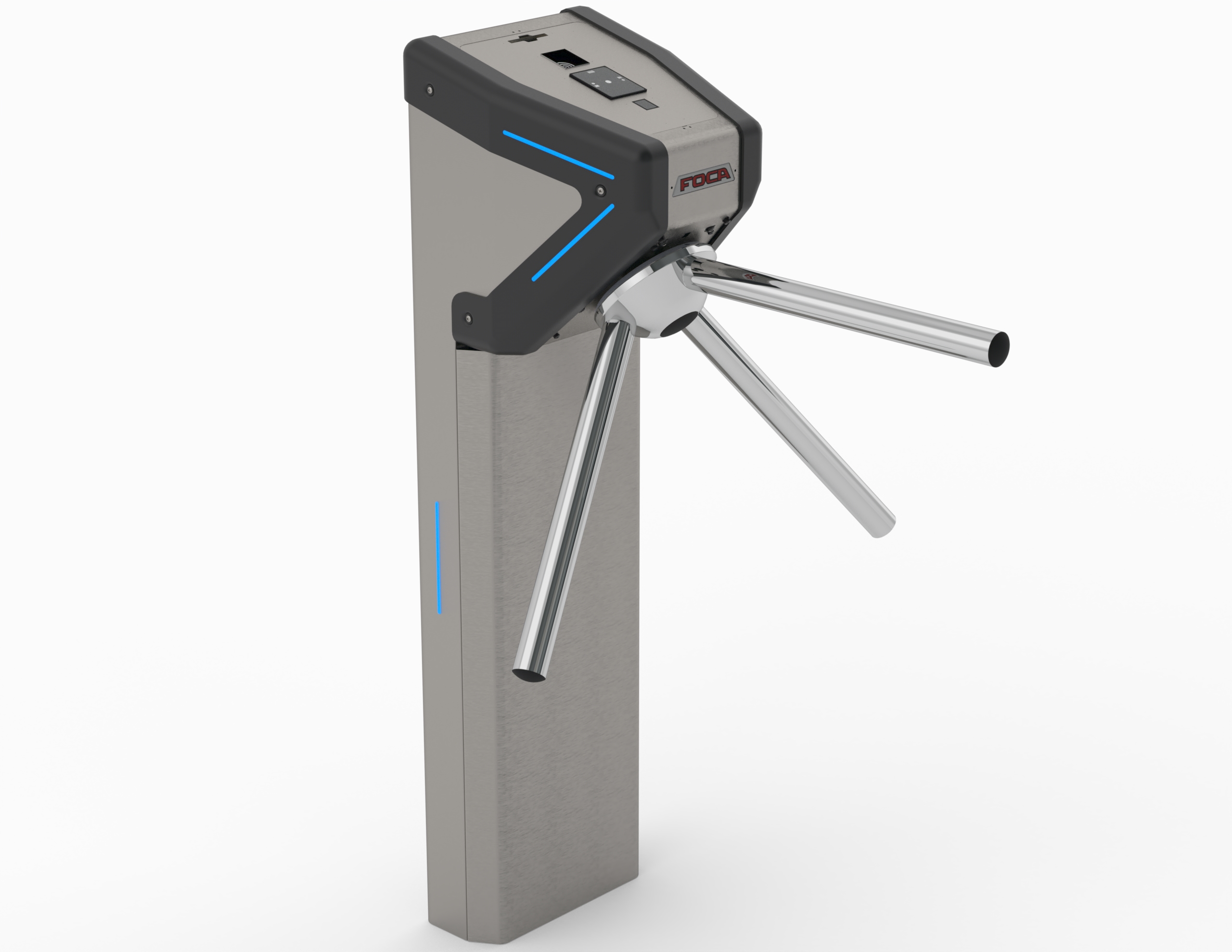

Carbon steel cabinet, coated with black electrostatic powder paint, and brushed stainless steel top cover;
Polished aluminum arm mounting cap;
Brushed stainless steel arm;

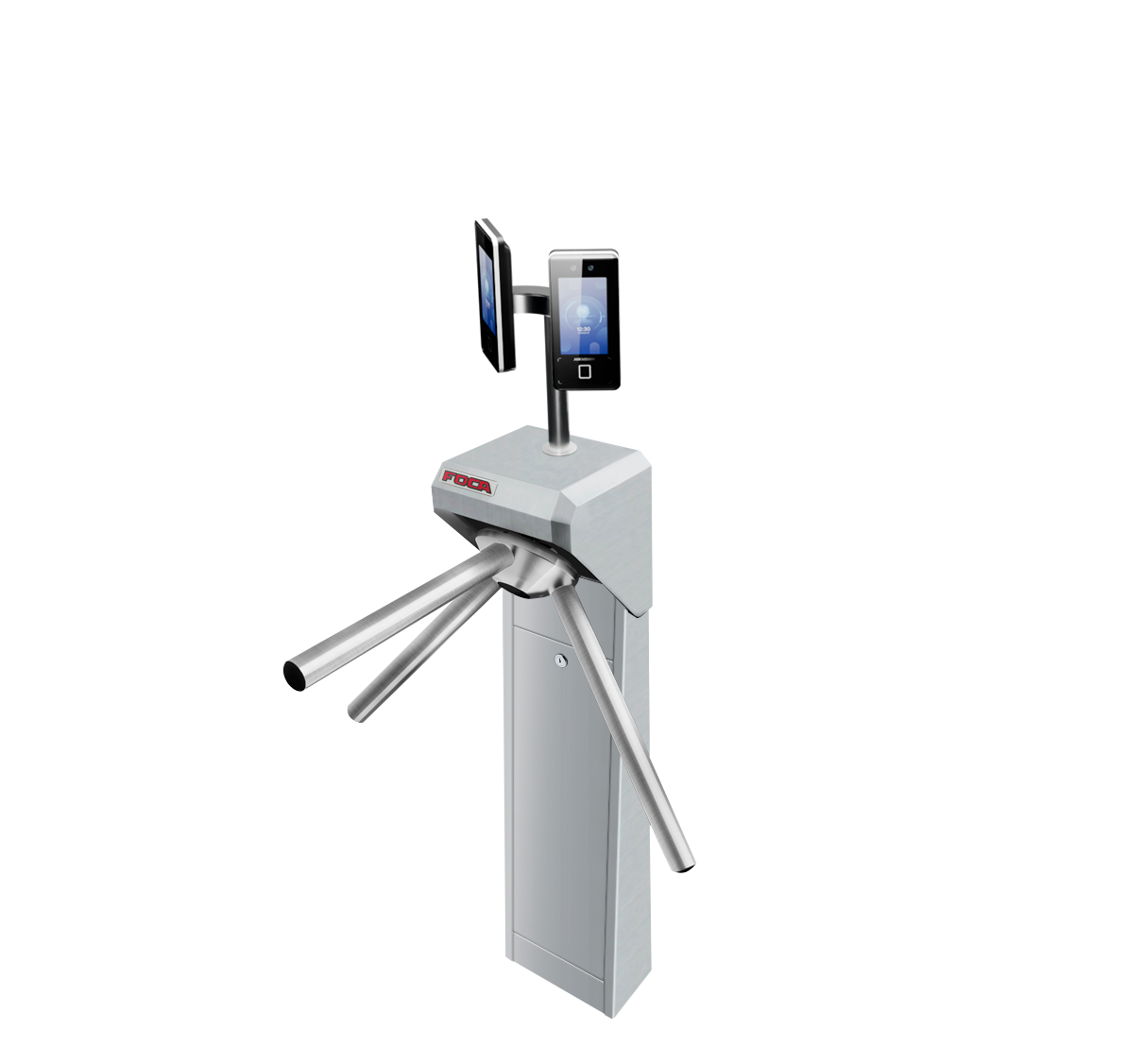

Customizable top cover to accommodate components such as displays, readers, keyboards, among others;
Cabinet pedestal with front door and internal space to accommodate various components or electronic systems;
Complete access and removal of mechanical and electrical assemblies through the top cover;
Internal components with anti-corrosion treatment;
Electromechanical control of both access directions (bidirectional);
IP (Ingress Protection) rating: 53;
Power supply: 110/220 VAC, 50/60 Hz;
Maximum power consumption: 30 W;
Maximum relative humidity for operation: 95% non-condensing;
Operating temperature: -10°C ~ 55°C.

The equipment operates with individual signals for each direction of passage (entry or exit). The passage remains blocked until the control system sends a release signal.
Once passage has been made, the arms are blocked again, awaiting a new release signal. If the user does not start passage within a predetermined period of time (time-out), the passage rotation is blocked again.
For each access made (entry or exit), the electronic interface of the lock sends an individual end-of-rotation signal.
During the user's passage, the mechanical system prevents the arms from moving in the opposite direction to the authorized passage, in addition to ensuring a return to the locking position after the user has passed.
The locking solenoids are only energized during unauthorized passage attempts, avoiding unnecessary energy consumption.
In the event of a power failure, passage will remain enabled in both directions.
